EECS 311 | Electronic Circuits
Home | Schedule | Problem Sets | Labs | Tutorials
Lab Assignments
Lab reports should be turned in in lecture on the day they are due. See the online tutorials for information on using lab equipment.
| Grade Weight | Date Issued | Report Due | |
| Lab 0 Introduction, Equipment Handout | - | 9/14/2009 | no report |
| Lab 1 Active Filters | 15% | 9/21/2009 | 10/5/2009 |
| Lab 2 Non-Ideal Opamps | 15% | 10/5/2009 | 10/21/2009 |
| Lab 3 Perpetual LED | 15% | 10/26/2009 | 11/9/2009 |
| Lab 4 Single-Stage Amplifier [ lab4.mod ] | 15% | 11/9/2009 | 11/23/2009 |
| Lab 5 Three-Stage
Amplifier [ lab5.mod
] Report template [ doc ] |
25% | 11/23/2009 | 12/7/2009 |
| Lab 6 Common-Gate Amplifier | 15% | 12/7/2009 | no report |
Lab Kit
Each student will receive a lab kit with the following components. Use this kit to complete the lab assignments. At the end of the semester, students may keep their kits - have fun!
| Quantity | Description | Supplier | Part Number |
| 1 | Storage box | Mouser | 866-A214 |
| 1 | Breadboard | Jameco | 20601 |
| 1 | CA3083 5-NPN transistor array | Newark | 06F2047 |
| 10 | 1N5711 Schottky Diode | Digi-Key | 497-2499-1-ND |
| 1 | HLMP-K155 Low-voltage LED | Digi-Key | 516-1312-ND |
| 4 | LM741 | Digi-Key | LM741CNFS-ND |
| 1 | PV36W103C01B00 10kOhm 25-turn potentiometer | Digi-Key | 490-2875-ND |
Components Available in Lab
These resistors are available in the lab.
| Ohm | Ohm | Ohm | kOhm | kOhm | kOhm | MOhm | ||
| 1.0 | 10 | 100 | 1.0 | 10 | 100 | 1.0 | ||
| 1.2 | 12 | 120 | 1.2 | 12 | 120 | 1.2 | ||
| 1.5 | 15 | 150 | 1.5 | 15 | 150 | 1.5 | ||
| 1.8 | 18 | 180 | 1.8 | 18 | 180 | 1.8 | ||
| 2.2 | 22 | 220 | 2.2 | 22 | 220 | 2.2 | ||
| 2.7 | 27 | 270 | 2.7 | 27 | 270 | 2.7 | ||
| 3.3 | 33 | 330 | 3.3 | 33 | 330 | 3.3 | ||
| 3.9 | 39 | 390 | 3.9 | 39 | 390 | 3.9 | ||
| 4.7 | 47 | 470 | 4.7 | 47 | 470 | 4.7 | ||
| 5.6 | 56 | 560 | 5.6 | 56 | 560 | 5.6 | ||
| 6.8 | 68 | 680 | 6.8 | 68 | 680 | 6.8 | ||
| 8.2 | 82 | 820 | 8.2 | 82 | 820 | 8.2 |
These capacitors are available in the lab. Tantalum and Electrolytic capacitors are polarized, meaning only positive voltages may be applied across the capacitor.
| pF | Type | nF | Type | uF | Type | ||
| 2.2 | Ceramic | 1.0 | Ceramic | 0.1 | Electrolytic | ||
| 5 | Ceramic | 1.2 | Ceramic | 0.22 | Tantalum | ||
| 10 | Ceramic | 1.5 | Ceramic | 0.47 | Tantalum | ||
| 12 | Ceramic | 1.8 | Ceramic | 1.0 | Electrolytic | ||
| 15 | Ceramic | 2.2 | Ceramic | 1.5 | Electrolytic | ||
| 18 | Ceramic | 2.7 | Ceramic | 2.2 | Electrolytic | ||
| 22 | Ceramic | 3.3 | Ceramic | 3.3 | Electrolytic | ||
| 27 | Ceramic | 3.9 | Ceramic | 4.7 | Electrolytic | ||
| 33 | Ceramic | 4.7 | Ceramic | 6.8 | Electrolytic | ||
| 39 | Ceramic | 5.6 | Ceramic | 10 | Electrolytic | ||
| 47 | Ceramic | 6.8 | Ceramic | 12 | Electrolytic | ||
| 56 | Ceramic | 8.2 | Ceramic | 15 | Electrolytic | ||
| 68 | Ceramic | 10 | Ceramic | 18 | Electrolytic | ||
| 82 | Ceramic | 12 | Ceramic | 22 | Electrolytic | ||
| 100 | Ceramic | 15 | Ceramic | 27 | Electrolytic | ||
| 120 | Ceramic | 18 | Ceramic | 33 | Electrolytic | ||
| 150 | Ceramic | 22 | Ceramic | 39 | Electrolytic | ||
| 180 | Ceramic | 27 | Ceramic | 47 | Electrolytic | ||
| 220 | Ceramic | 33 | Ceramic | 56 | Electrolytic | ||
| 270 | Ceramic | 39 | Ceramic | 68 | Electrolytic | ||
| 330 | Ceramic | 47 | Ceramic | 82 | Electrolytic | ||
| 390 | Ceramic | 56 | Ceramic | 100 | Electrolytic | ||
| 470 | Ceramic | 68 | Ceramic | 120 | Electrolytic | ||
| 560 | Ceramic | 82 | Ceramic | 150 | Electrolytic | ||
| 680 | Ceramic | 100 | Ceramic | 180 | Electrolytic | ||
| 820 | Ceramic | 120 | Ceramic | 220 | Electrolytic | ||
| 150 | Ceramic | ||||||
| 180 | Ceramic | ||||||
| 220 | Ceramic | ||||||
| 270 | Ceramic | ||||||
| 330 | Ceramic | ||||||
| 390 | Ceramic | ||||||
| 470 | Ceramic | ||||||
| 560 | Ceramic | ||||||
| 680 | Ceramic | ||||||
| 820 | Ceramic |

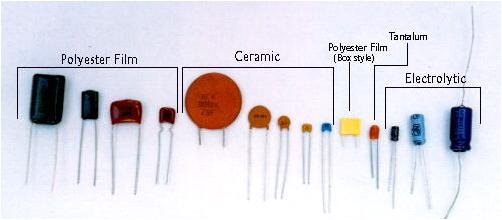

Types of capacitors - Tantalum and Electrolytic are polarized.
